SOLD

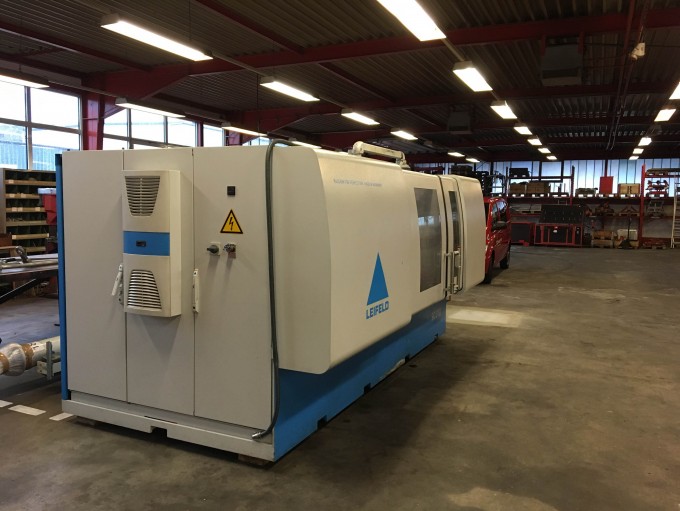

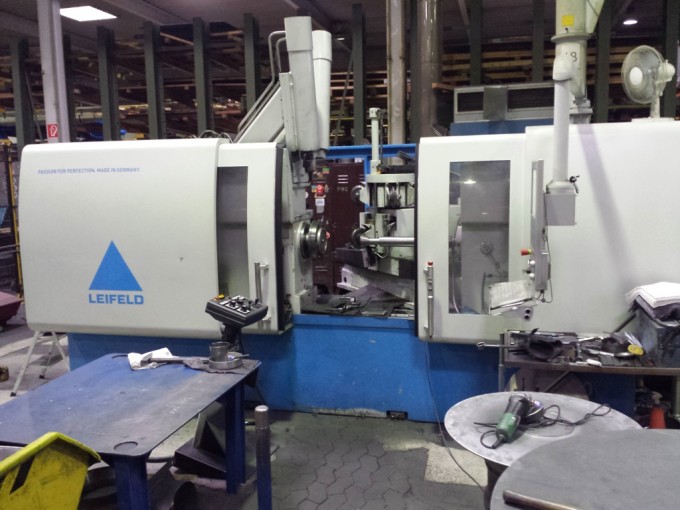

Leifeld SC 310
(Stock# 3417)

2010 - Leifeld SC 310

Technical Data

MACHINE SPECIFICATIONS:

  IMPERIAL METRIC
Blank Capacity                                   39.37 inches 1,000 mm
Center Height 19.69 inches    500 mm
Distance Between Centers 24-24 inches 1,200 mm
Longitudinal Slide Force 6,750 lbs      30 KN
Longitudinal Slide Travel 24 inches    500 mm
Topslide Force 6,750 lbs      30 KN
Topslide Travel 12 inches    300 mm
Tool Mounting DIN 55027 DI # 11 DIN #11
Tailstock Stroke 17.71 inches    450 mm
Ejector Stroke 11.81 inches    300 mm
Tailstock Force 8,000 lbs      36 KN
Spindle Motor Drive 30 HP   22.1 KW
Spindle Speed 250-200 rpm 250-2500 rpm
Total Weight 19,841 lbs  9,000 kg
Voltage 380 Volts/3 phase/50 cycle 380 Volts/3 phase/50 cycle



ACCESSORIES INCLUDED:



  • Centering Device
  • Material Support Cylinder
  • 2 BAE Units
  • 6 Position Tool Changer
  • Tool Jib Crane
