SOLD
Leifeld PNC 250
(Stock# 3403)
1994 Leifeld PNC 250 - capacity up to 20" diameter.
Technical Data
Metric |
Imperial |
|
| Center Height | 250 mm | 9.8 inches |
| Center Distance | 625 mm | 25 inches |
| Bed Length | 2400 mm | 94.5 inches |
| Spindle Speeds | 300 - 3000 rpm | 300 - 3000 rpm |
| Spindle Power | 4/3 Kw | 5/4 hp |
| Drive Rating of Hydraulic Unit | 4.6 Kw | 6.2 hp |
| Spindle Mount | DIN # 6 | DIN # 6 |
| Tailstock Sleeve Travel | 800 mm | 31.5 inches |
| Hydraulic Ejector Stroke | 100 mm | 3.9 inches |
| Hydraulic Tailstock Stroke | 350 mm | 13.8 inches |
| Lower Slide - Cylinder Stroke | 300 mm | 11.8 inches |
| Upper Slide - Cylinder Stroke | 250 mm | 9.8 inches |
| Approximate Weight | 3,000 kg | 6,614 pounds |

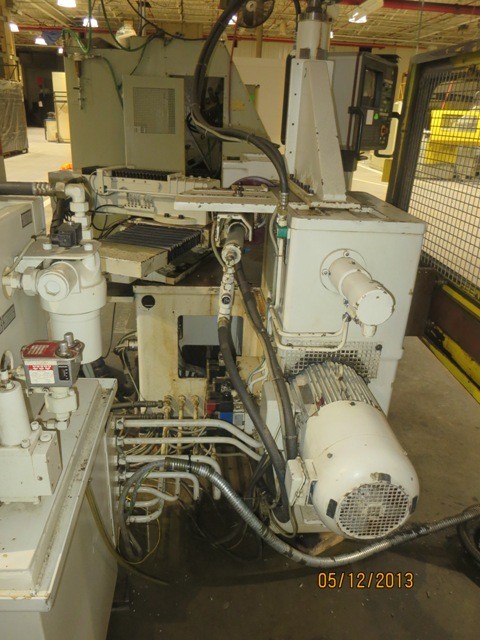

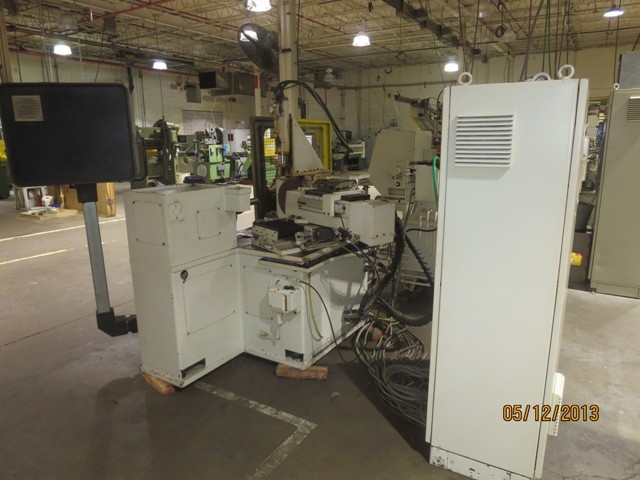

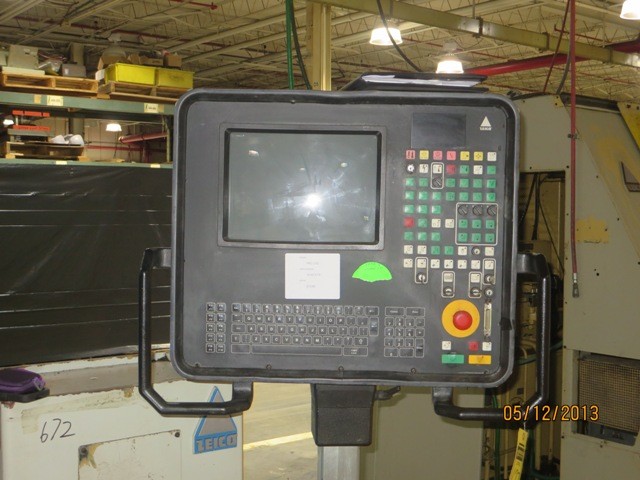

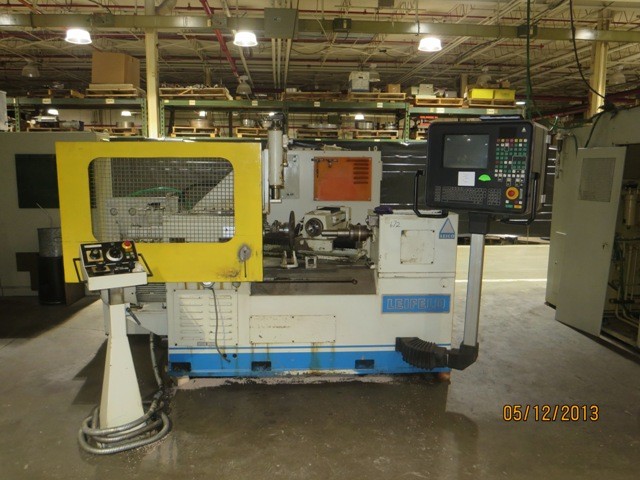

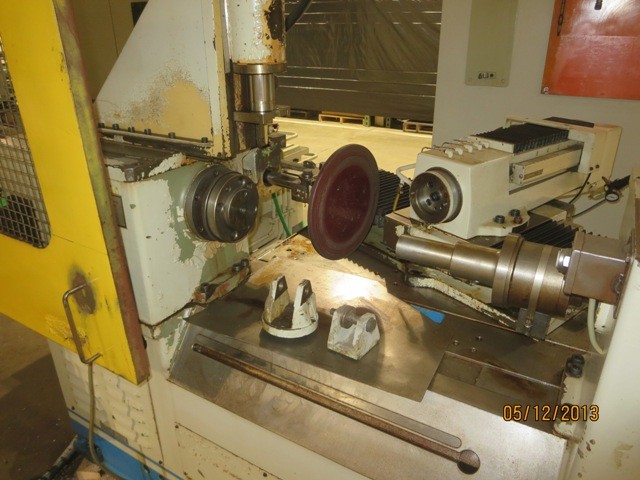

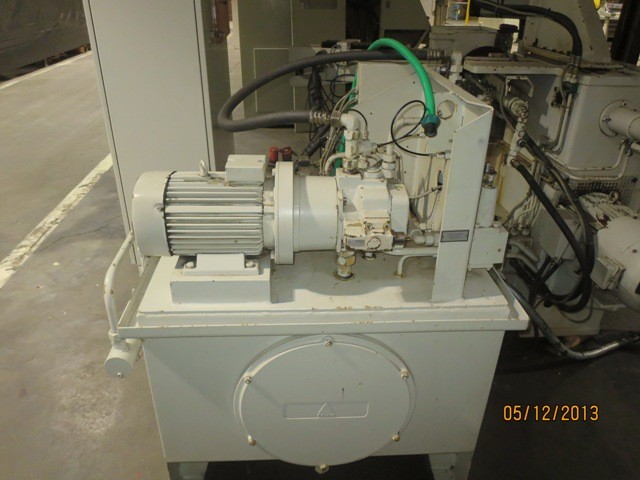

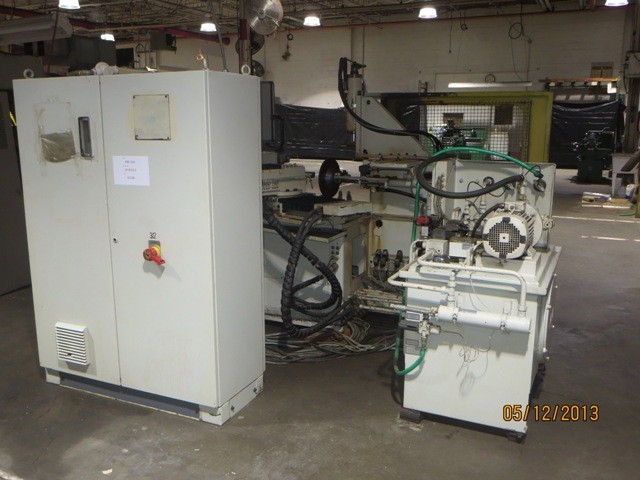

Gallery
