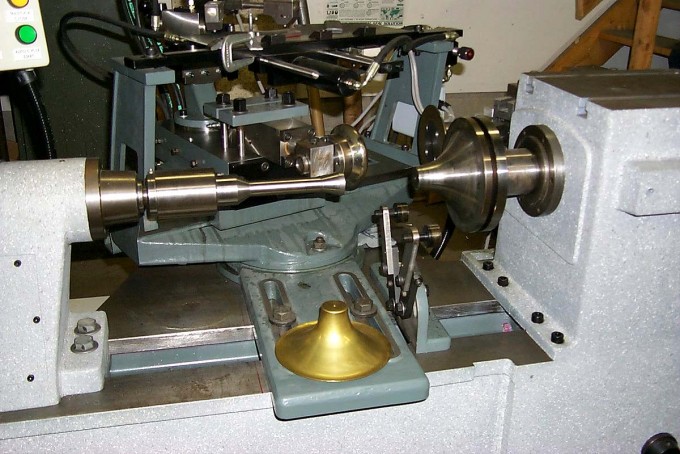

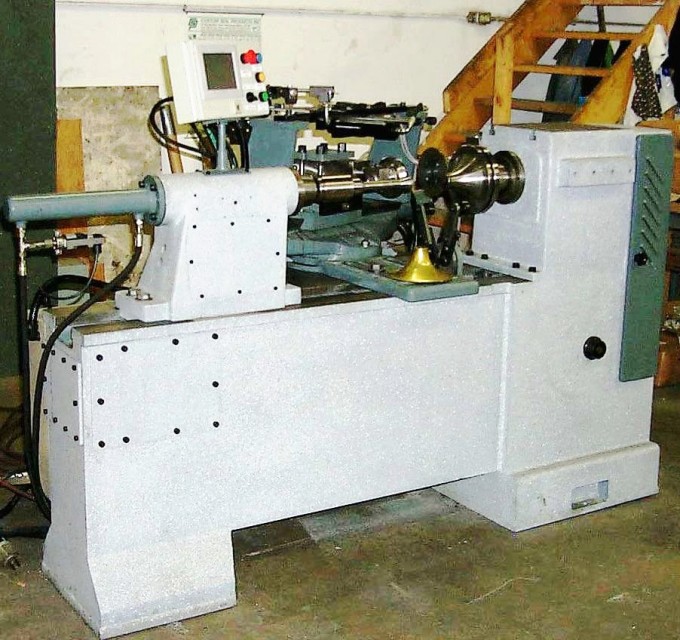

23.5 Inches - Denn RPA 290
(Stock# 3231)

This machine has been designed to spin components made of light-gauge sheet and to arrive, at the same time, at plate thicknesses which cannot be processed manually.

While the thickness which can be spun depends on the material to be used and on the shape of the component to be obtained.  This machine can process thicknesses from 0.5 mm to 2.5 mm.

This Machine has been completely rebuilt with new hydraulics, new PLC control, new traces and slides - as new.  Set up with your part and has a 1 year warranty.

Technical Data
Maximum Blank Capacity 23.5 Inches 600 mm
Center Height of Machine 11.75 Inches 290 mm
Main Drive 4/6 H.P. 3/4.5 kW
Spindle Speeds 250/430/500/780/860/1560 RPM
Hydraulic Motor 5 H.P. 3.7 kW
